How to Check Your Proxy and Firewall Settings: A Step-by-Step Guide

Stable connectivity depends on two components working together: the proxy and the firewall. When either one holds the wrong configuration, applications fail to connect to the internet, requests time out, and pages quietly refuse to load for no obvious reason.

In this guide you will learn how to check proxy and firewall settings on every major platform. It explains how to check the proxy firewall and DNS configuration across operating systems and browsers, written as a clear and practical sequence for technical users.

What proxy and firewall settings are and why you should check them

A proxy is a server that forwards requests between a client and a destination host. It receives user requests, applies its rules, and returns the responses. By acting as an intermediary, a proxy can mask internal ip addresses and add a useful layer of privacy.

A firewall is a network security component that inspects network traffic and enforces a set of security rules. The firewall evaluates each packet against policy and decides whether it may pass. A firewall also records events that support later analysis and helps protect network resources.

A proxy firewall combines both roles. Also known as an application firewall, this gateway firewall filters traffic at the application layer rather than only by ip addresses and ports. A proxy firewall serves as a controlled boundary between the internal and the external network.

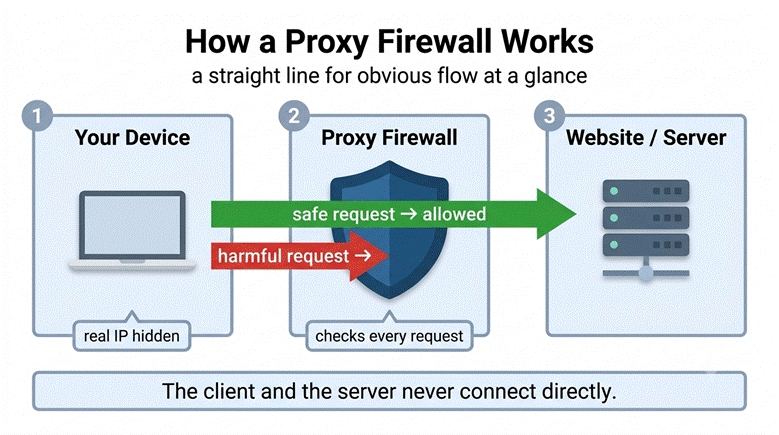

Understanding how a proxy firewall works clarifies why verification matters. The proxy firewall intercepts each session and prevents direct connections to outside systems. It then forwards approved requests on behalf of the client, which keeps the protected network isolated from untrusted hosts.

A proxy firewall filters traffic by content, not by address alone. The proxy firewall examines every request at the application protocol level, using deep packet inspection to block intrusion attempts and known security threats far more reliably than a traditional firewall can.

Several types of proxy firewalls exist. A forward proxy firewall sits in front of internal clients. Other firewall types include the packet filtering firewall and the stateful firewall, with each one inspecting a different layer of the network connection.

An anonymous proxy hides the client identity, while a high anonymity proxy does not send identifying headers at all. Application proxy firewalls enhance protection further, since they analyze each network protocol in depth and report detailed activity for review.

Correct proxy and firewall settings keep web browsing responsive and maintain network performance. These proxy firewalls provide logs that let administrators audit user access and confirm that legitimate types of traffic are never blocked by accident or by an outdated rule.

The proxy server's cache can also speed up repeated requests, while the proxy firewall's inspection guards the system against intrusion. Together these functions protect network resources and keep daily operations predictable for both home and corporate networks.

Reliable results begin with a dependable provider. proxys.io offers residential, mobile, datacenter, and IPv4 or IPv6 proxy server plans for data collection, SEO monitoring, and market research. Teams that need stable, well configured endpoints are encouraged to try the proxys.io product range.

Common connectivity issues and how to identify them

Before changing any configuration, identify the symptom first. A proxy or firewall fault usually produces recognizable signs, and matching the symptom to the cause saves time. The table below maps frequent problems to their identification and the recommended response.

Use the table as a triage map. If several symptoms appear together, start with the proxy settings, then the firewall, and review DNS last.

How to check proxy settings

The method to check the proxy depends on the platform in use. The following steps show how to verify proxy settings on the main operating systems and inside the browser, so you can confirm the correct values quickly and without guesswork.

On Windows

Open Settings with the Win and I keys, then select Network and Internet. In the sidebar choose Proxy. Review the Manual proxy setup section carefully and confirm that the ip address and the port both match your intended values.

To toggle proxy use on or off, use the same panel. To inspect active sessions, run netstat in the command line. A configured proxy server then appears in the output, which lets you check the configuration quickly and confirm that traffic is routed correctly.

If you use a proxy on a local network, Windows may rely on an automatically detect settings option. Disable it when entering a manual proxy server, because automatic discovery and a static entry can conflict and produce unpredictable routing.

On macOS

Open System Settings and select Network. Choose the active network connection, open Advanced, and select Proxies. Each protocol can be set separately, including HTTP, HTTPS, and SOCKS, which is useful when only one service needs to be routed through the server.

From the Terminal, run the scutil command with the proxy option to display the current proxy configuration. Confirm that the server address, the port, and any listed exceptions match your intended network settings before you save the changes.

On Linux

Most distributions store proxy values in environment variables. Inspect them with the printenv command filtered for proxy. Check the http_proxy and https_proxy variables and confirm that each one carries the correct ip address and the expected credentials.

To test whether requests actually pass through the server, run curl with the proxy flag against any public website. A valid response confirms the proxy network path. Most desktop environments also expose a Network Proxy entry under their own system settings.

In Google Chrome and other browsers

Chrome relies on the system configuration. Open the menu, choose Settings, and select Open your computer's proxy settings. This deliberately opens the operating system dialog rather than separate browser settings, so any change applies system wide.

On Windows this opens Internet Properties. Select the Connections tab, click LAN settings, and review the current entry. To route a local network through a proxy, enable Use a proxy server for your LAN, then confirm the values and save them.

Firefox keeps an independent configuration. Open its Settings, search for proxy, and open the network panel. When configuring a proxy in one browser only, this separation lets other applications continue to use a direct route to the internet.

How to check firewall settings

On Windows, open Settings, select Update and Security, then Windows Security, and choose Firewall and network protection. Confirm that the firewall is active for the domain, the private, and the public profiles, since each profile carries its own rule set.

Select Allow an app through the firewall to review which applications may connect to the internet. For finer control, open Advanced settings and manage the inbound rules by network protocol and port, for example by allowing TCP traffic on a specific port.

On macOS, open System Settings, select Network, then Firewall. On Linux, the ufw status command lists the active rules, while iptables shows the full set that governs network access and the level of user access granted to each service.

A correctly tuned firewall protects the network without blocking valid work. During testing, confirm that ports 80 and 443 remain open, so that standard web traffic and ordinary proxy connections are never rejected by an overly strict rule.

How to check DNS configuration

The Domain Name System translates hostnames into numeric addresses. When DNS fails, sites will not load even though the network connection is active. Reviewing the proxy firewall and DNS configuration together helps you avoid a wrong diagnosis and wasted effort.

On any platform, run nslookup or dig against a known domain such as example.com. If the result returns a valid ip address, name resolution works correctly. If it fails, switch to a public resolver, for example 8.8.8.8, and then test again.

On Windows, open Network and Sharing Center, select Change adapter settings, open the adapter properties, and review Internet Protocol Version 4. Confirm that the resolver values match your intended configuration settings rather than an old or cached entry.

How to fix the most common proxy and firewall errors

After you check proxy and firewall behavior, apply fixes in a deliberate order. Begin with the simplest action and escalate only when the problem persists. Most faults resolve within a few controlled steps, so avoid changing many settings at once.

First, toggle the proxy off and on, then enter the ip address and the port again. Second, remove any unknown extensions that may alter the proxy settings. Third, run an antivirus scan to rule out hidden malware that quietly rewrites routing.

If a single site is unreachable, create an inbound firewall rule. Open the firewall console, add a rule for the required port, choose Allow, apply the relevant profiles, and give the rule a clear and descriptive name for future reference.

Changing rules can expose a system, so proceed with care. Common proxy firewall FAQs suggest restoring defaults if a change causes instability. Record every adjustment, so the original configuration settings can be restored quickly if the result is not what you expected.

Avoid public and untrusted endpoints, which may intercept your internet traffic. A VPN encrypts an entire connection, yet this guide covers proxy and firewall diagnostics rather than VPN setup, because the two technologies address different needs and operate at different points.

Verifying that your proxy works correctly for data collection, SEO and testing

Once connectivity returns, confirm that the proxy performs correctly for production work. Checking your proxy means more than a single successful ping. Validate the exit ip address, the latency, and the stability of the connection under sustained, realistic load.

Open an ip address lookup service through the proxy and confirm that it reports the expected location. For an anonymous proxy, verify that the real address never leaks during the session. Repeat the check across several endpoints to confirm consistent behavior.

For data collection and web scraping, measure the success rate and the response time of each request. For SEO monitoring, confirm that results reflect the target region. For ad verification and market research, ensure that every session keeps a single consistent identity.

For these workloads, proxys.io provides residential, mobile, datacenter, and dedicated IPv4 and IPv6 proxy server plans built for scraping, SEO, and analytics. If you need clean, well configured endpoints with predictable performance, try the proxys.io product lineup for your next project.

With a clear method to check proxy firewall and DNS behavior, you can diagnose faults quickly and keep your network traffic flowing. Regular review of proxies and firewalls keeps the environment secure, compliant, and ready for demanding data tasks throughout the year.
