When You Need a UDP Proxy and How SOCKS5 UDP Support Works (2026)

What Is a UDP proxy?

A UDP proxy is a type of proxy that forwards User Datagram Protocol traffic between a client and a server. It acts as an intermediary for UDP, accepting each UDP packet from the client and forwarding it toward the destination IP address and port.

The destination server sees the proxy server IP address rather than the original client. As a low-level proxy, UDP proxies do not interpret application data. They simply relay datagrams, which is what makes UDP proxies suitable for fast, real-time transmission. UDP proxies stay protocol agnostic, forwarding almost any packet without inspection.

UDP proxies differ sharply from http proxies. HTTP proxies were designed for web traffic, while UDP proxies are designed to move UDP packets. In practice, almost every UDP proxy today is a SOCKS5 proxy that implements the UDP ASSOCIATE command.

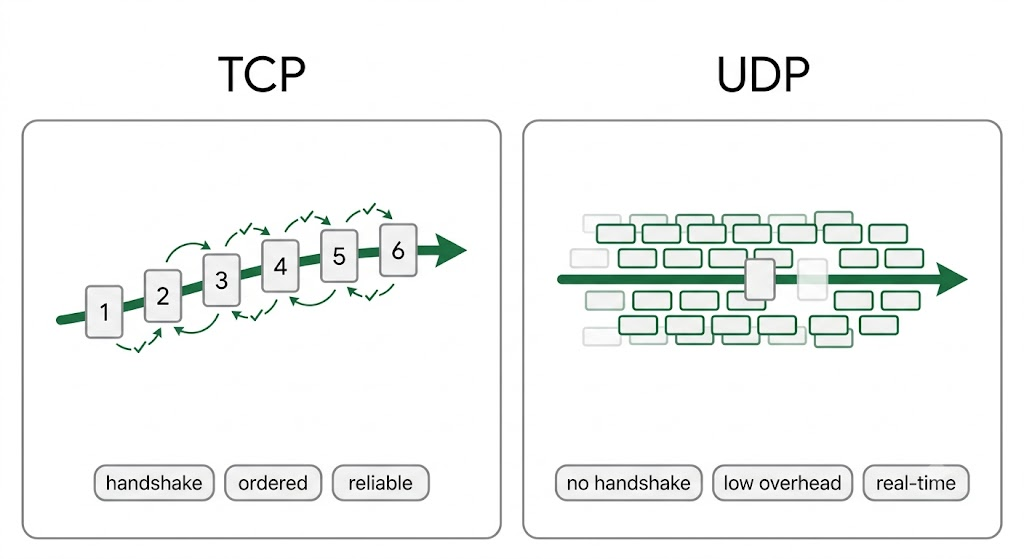

How the UDP and TCP protocols work

UDP is an acronym for User Datagram Protocol. It is a transport layer protocol at layer 4 of the OSI model, the same layer as the Transmission Control Protocol. Both protocols send packets across an Internet Protocol network, yet they behave very differently.

TCP is connection oriented. It opens with a handshake, numbers every packet, retransmits losses, and guarantees ordered, reliable delivery. That reliability adds overhead and latency. TCP fits web pages, file transfer protocol sessions, and any data transfer that must arrive intact.

UDP is connectionless. There is no handshake, no ordering, and no retransmission. Each UDP packet, also called a datagram, carries a compact header with source and destination ports, length, and a checksum. This low overhead is what makes UDP fast and lightweight.

Because UDP doesn’t wait for acknowledgements, it can send messages known as datagrams across the Internet Protocol with minimal delay. The connectionless nature of UDP makes it commonly used for voice and video, where a late UDP packet is already useless. Because the protocol is connectionless, UDP proxies add little overhead of their own.

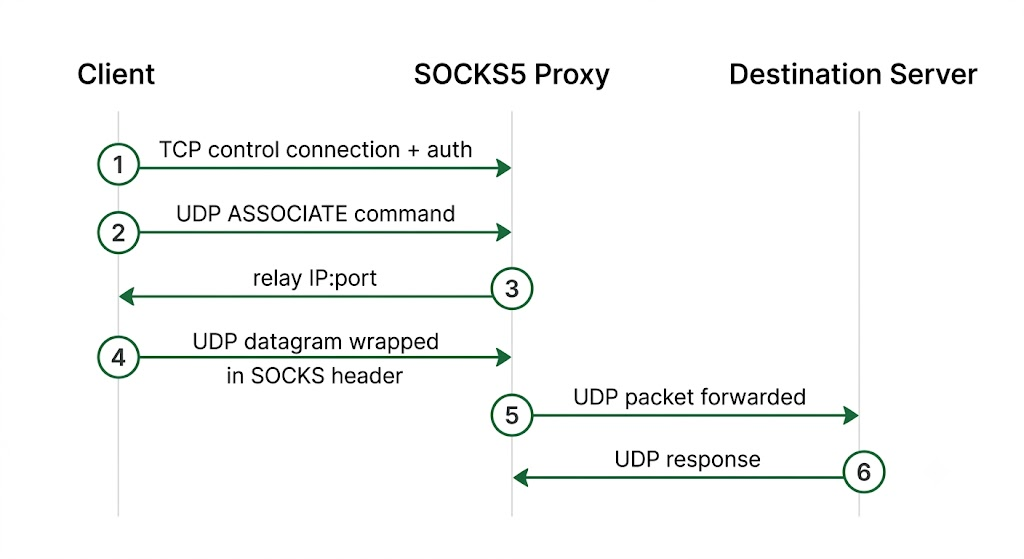

How a UDP proxy works through the SOCKS5 UDP ASSOCIATE Flow (RFC 1928)

Understanding how a UDP proxy works begins with SOCKS5. The client opens a TCP control connection to the proxy server and authenticates. It then issues the UDP ASSOCIATE command, asking the proxy to open a relay for UDP traffic.

The proxy server answers with an IP address and port for the UDP relay. The client sends each UDP packet to that ip and port, wrapped in a short SOCKS header that names the final destination. The proxy reads the header and continues forwarding UDP packets to the target.

When the destination returns a UDP response, the proxy relays it back over the same path. The TCP control connection must stay open for the association to live. This behavior is defined by the Internet Protocol standard RFC 1928, the SOCKS5 specification. Well configured UDP proxies keep that control channel alive automatically.

Why HTTP/HTTPS Proxies Can't Carry UDP

HTTP and HTTPS proxies operate at the application layer and understand only web traffic over TCP. An HTTP proxy uses the CONNECT method to tunnel a TCP stream, so it can carry Hypertext Transfer Protocol securely, but it offers no path for sending UDP at all.

This is the defining limit of http proxies. They cannot relay a single UDP packet. If a workload depends on UDP, an HTTP proxy fails silently or downgrades to TCP. Only SOCKS5 with UDP ASSOCIATE can truly handle UDP traffic and keep datagrams flowing. For online gaming and VoIP, UDP proxies keep each packet moving with low latency.

SOCKS5 vs HTTP vs SOCKS4

The right protocol depends on the traffic you carry. The table below compares three common proxy options on whether each can handle UDP traffic.

SOCKS5 is the clear choice when you must handle UDP traffic. Because SOCKS proxies forward packets without rewriting them, they integrate cleanly with automation and data collection tools, which is why many teams prefer SOCKS proxies over plain http proxies for mixed workloads.

How to verify a proxy genuinely supports UDP

Many vendors claim UDP support yet implement only TCP CONNECT. To confirm that a proxy genuinely supports UDP, test the UDP ASSOCIATE path directly instead of trusting a feature list from the proxy provider. Protocol behavior, not marketing, is what matters here.

A practical check uses DNS. Configure a SOCKS5 client, then send a DNS query over UDP through the proxy to a public resolver on udp port 53. If a valid UDP response comes back, the proxy server relays real UDP packets.

You can also script a UDP socket bound through the proxy and measure replies. A reliable UDP proxy returns datagrams quickly. A fake one times out or answers only over TCP. This simple test saves hours when comparing any UDP proxy provider. Reliable UDP proxies pass this packet level check; weak ones fail it.

proxys.io  Looking for a dependable UDP proxy provider? proxys.io offers SOCKS proxies across datacenter, residential, and mobile IP addresses in many countries. It is a practical place to test genuine UDP support and confirm UDP ASSOCIATE behavior on your own endpoints. Try our proxy products and run the verification above before you scale.

UDP proxy use cases

UDP proxies are used wherever software relies on UDP and must route that traffic through a proxy server. The use cases below focus on data collection, testing, and monitoring rather than casual browsing, and each one shows where UDP proxies offer real value.

DNS Resolution & QUIC / HTTP/3 data collection

Modern data collection now meets QUIC, the protocol behind HTTP/3, which runs over UDP on port 443. To gather data from QUIC first sites, your proxy must handle UDP traffic, not just TCP, or requests break.

DNS is the other frequent case. Resolving DNS remotely through a SOCKS5 proxy keeps lookups aligned with the exit IP address. Consistent DNS over UDP improves accurate, location aware data transmission during large scraping jobs. Here UDP proxies keep DNS and QUIC consistent.

Performance & load testing

Engineering teams use UDP proxies to generate and route test traffic from many IP addresses. They can simulate VoIP, telemetry, or online gaming sessions and watch how a service behaves under heavy real-time load.

Because UDP provides no retransmission, these tests expose true packet loss and jitter. Sending UDP through proxies in different regions shows how latency and reliability shift by location, which is hard to measure from a single IP address. In load tests, UDP proxies replay gaming and VoIP packet patterns from many regions.

Many teams run UDP proxies for online gaming and VoIP checks in two or three regions at once to compare results and catch location specific failures early.

Ad verification & streaming QoS monitoring

Ad verification and streaming quality monitoring frequently touch media delivered over UDP. UDP proxies let analysts observe a stream, a live streaming feed, or an IPTV multicast from the vantage point of a chosen IP address.

This confirms the right creative plays, a stream starts fast, and voice and video stay smooth. Watching multicast or unicast transmission this way supports clean distribution of data to multiple recipients.

How to choose a UDP proxy and weigh IP type trade-offs

A reliable UDP proxy depends as much on the IP type as on the protocol. Datacenter IP addresses give the lowest latency and highest throughput, which suits performance testing and heavy forwarding UDP packets.

Residential IP addresses route through real consumer lines. They add latency and jitter yet reflect genuine last mile conditions, which is useful for ad verification. Mobile IPs sit behind carrier grade NAT, so udp connections may need keep alive packets to stay open.

Whatever the IP type, confirm the proxy network truly supports UDP and covers the locations you need. A broad proxy network with stable routes matters more for UDP than for TCP, since UDP has no built in recovery when a packet drops. Strong UDP proxies preserve the protocol exactly, so each datagram and packet arrives unchanged.

Test several UDP proxies side by side and keep the ones with the lowest jitter for your gaming or VoIP workload.

proxys.io  Ready to put a reliable UDP proxy to work? Explore the SOCKS proxy plans at proxys.io and test UDP traffic on real datacenter, residential, or mobile IP addresses. Our proxy network spans many countries, so you can validate latency and reliability where your users actually are. Start your trial with proxys.io today.

How to Set Up a SOCKS5 UDP proxy

Setting up a UDP proxy means configuring a SOCKS5 endpoint, not merely opening a firewall port. Begin with the host, port, username, and password supplied by your UDP proxy service.

For command line work, proxychains is reliable. In its config, add a line such as socks5 proxy.example.com 1080 user pass, then enable remote DNS. Launch your application through proxychains so its UDP traffic flows to the proxy server.

In Python, the PySocks library opens a UDP socket through SOCKS5. Call set_default_proxy with SOCKS5, host, and port, create a datagram socket, then send. The library performs the UDP ASSOCIATE handshake, so you can use UDP without extra code.

If a corporate firewall blocks the SOCKS port, allow it explicitly. The firewall must permit both the TCP control connection and the UDP relay range. Otherwise the proxy cannot keep forwarding UDP traffic and the association will drop. Most UDP proxies expose this same SOCKS5 endpoint for every packet.

After connecting, confirm the relay works. Send one UDP packet and watch for the reply. Healthy UDP proxies answer within a few milliseconds on a nearby datacenter IP.

Limitations & common Pitfalls

UDP proxies offer speed, but they carry trade-offs. Because UDP doesn’t guarantee delivery, a lost UDP packet is gone unless the application resends it. A proxy hop can add jitter, so always test before committing production traffic.

Datagram size is another pitfall. Keep each UDP packet under the path MTU, around 1400 bytes of payload, to avoid fragmentation that raises loss. Large datagrams sent via UDP across several hops fail more often.

Finally, not every type of proxy that advertises UDP support actually delivers it. Verify UDP ASSOCIATE, watch for NAT timeouts on long lived udp connections, and remember that SOCKS5 adds no encryption, so protect sensitive data at the application layer.

Budget for retries in your own client. Even good UDP proxies cannot recover a dropped datagram on their own, whatever the protocol.

FAQ

Do all SOCKS5 proxies support UDP?

No. SOCKS5 defines UDP ASSOCIATE, but many providers ship TCP only. Always test that the proxy genuinely supports UDP before you rely on it for real-time work.

What is the difference between UDP proxies and http proxies?

UDP proxies forward UDP datagrams for real-time traffic, while http proxies carry only web traffic over TCP. The difference between udp proxies and http proxies is the protocol each one supports.
